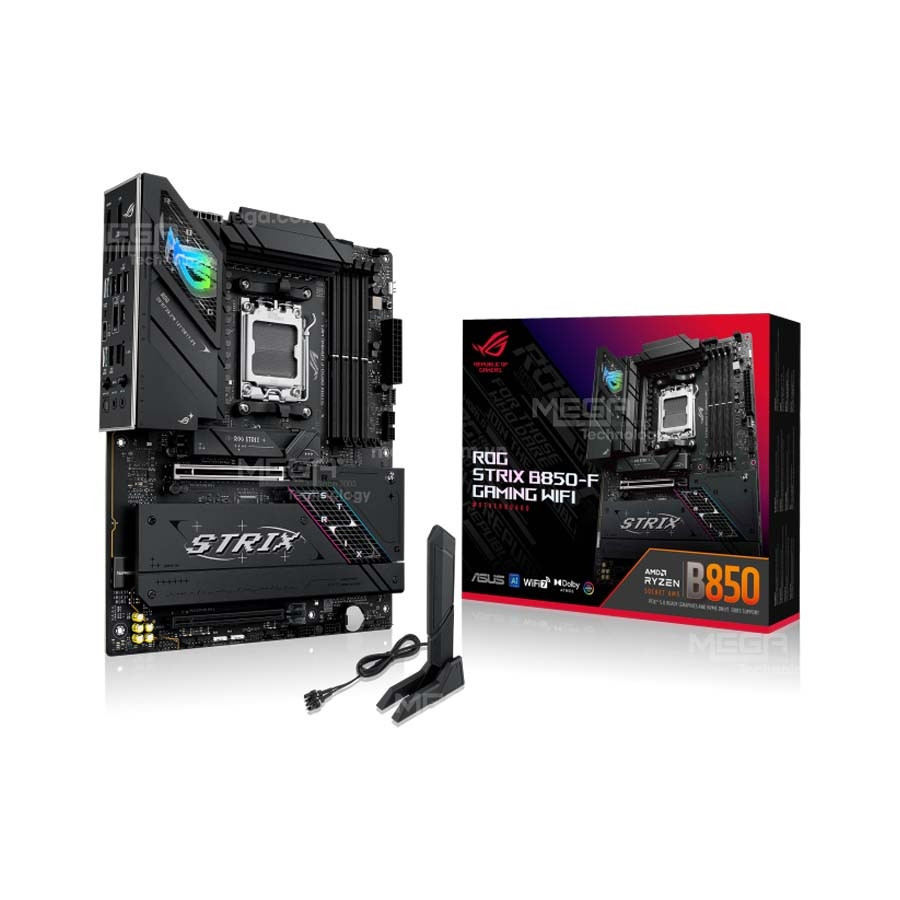

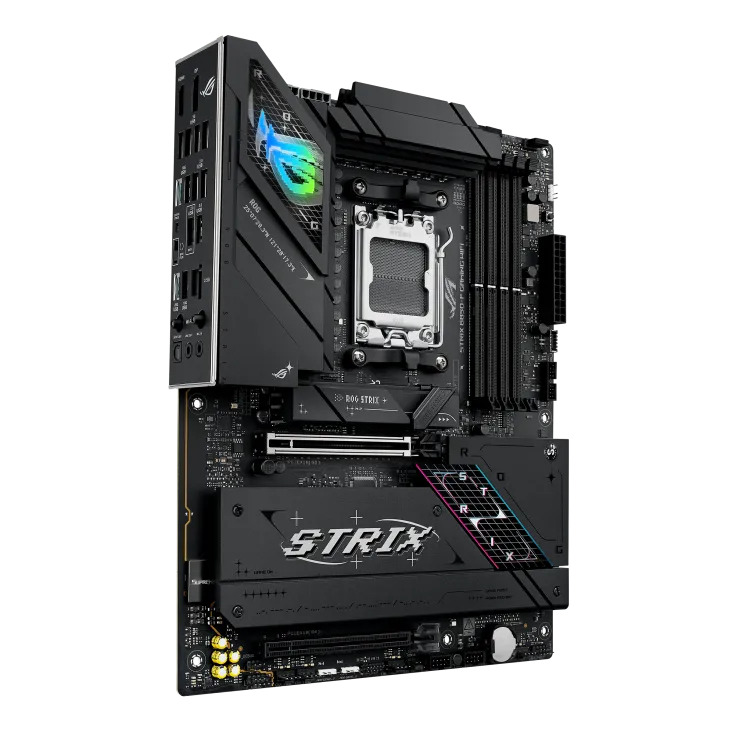

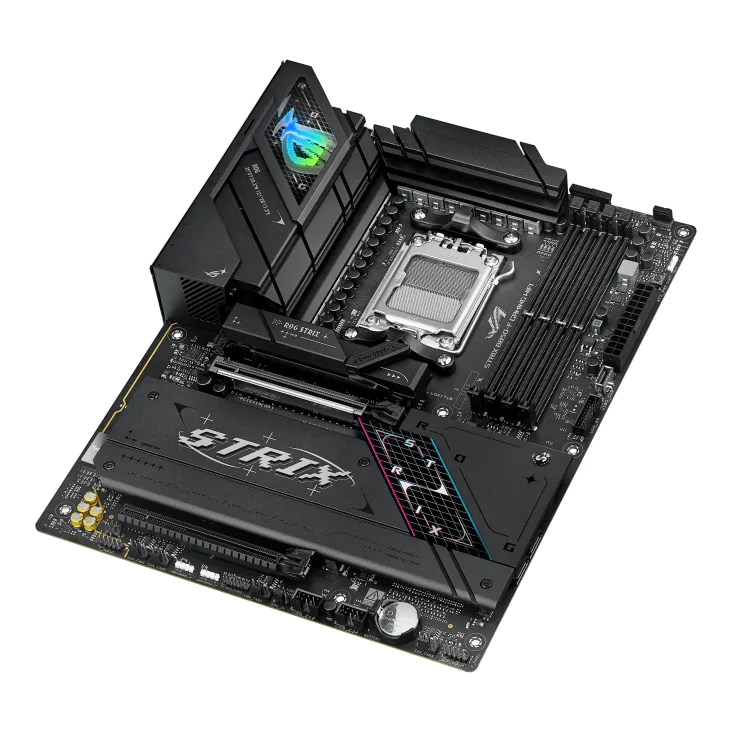

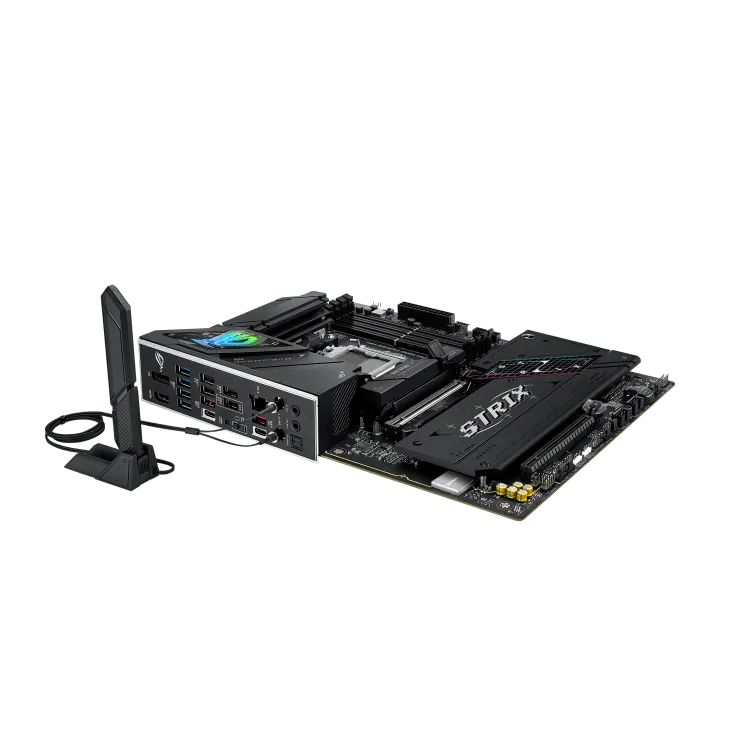

Mainboard Asus ROG STRIX B850-F GAMING WIFI DDR5

Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports

AMD Ryzen™ 7000 & 9000 Series Desktop Processors
M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)
M.2_2 (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)
M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)*

AMD B850 Chipset
M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)**
M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4)
2 x SATA 6Gb/s ports
* Specifications vary by CPU types.
** M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled.

AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4***

*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Rear USB (Total 12 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

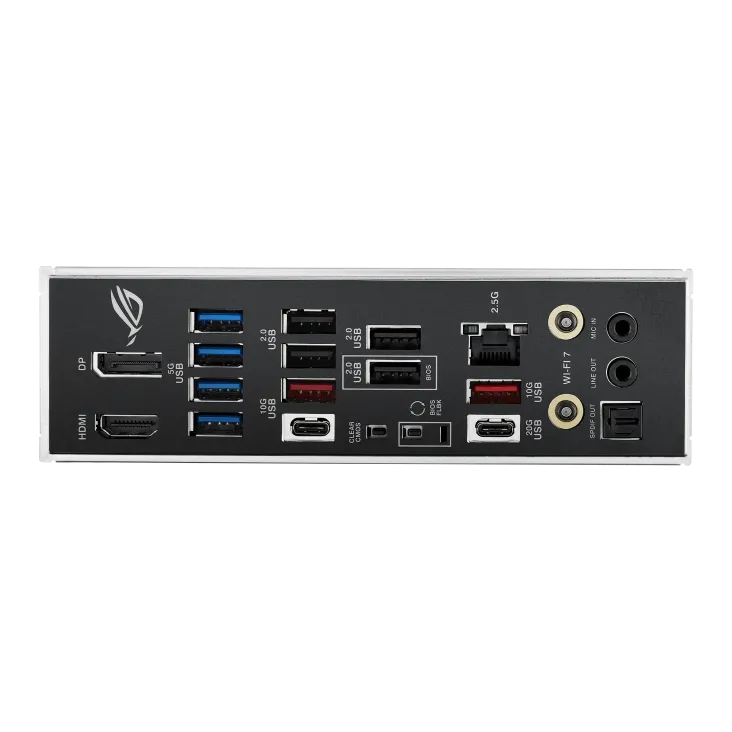

1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Power button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header

Extreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers

ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4
- GameFirst
- HWiNFO
- Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey

256 Mb Flash ROM, UEFI AMI BIOS

Windows 11

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
