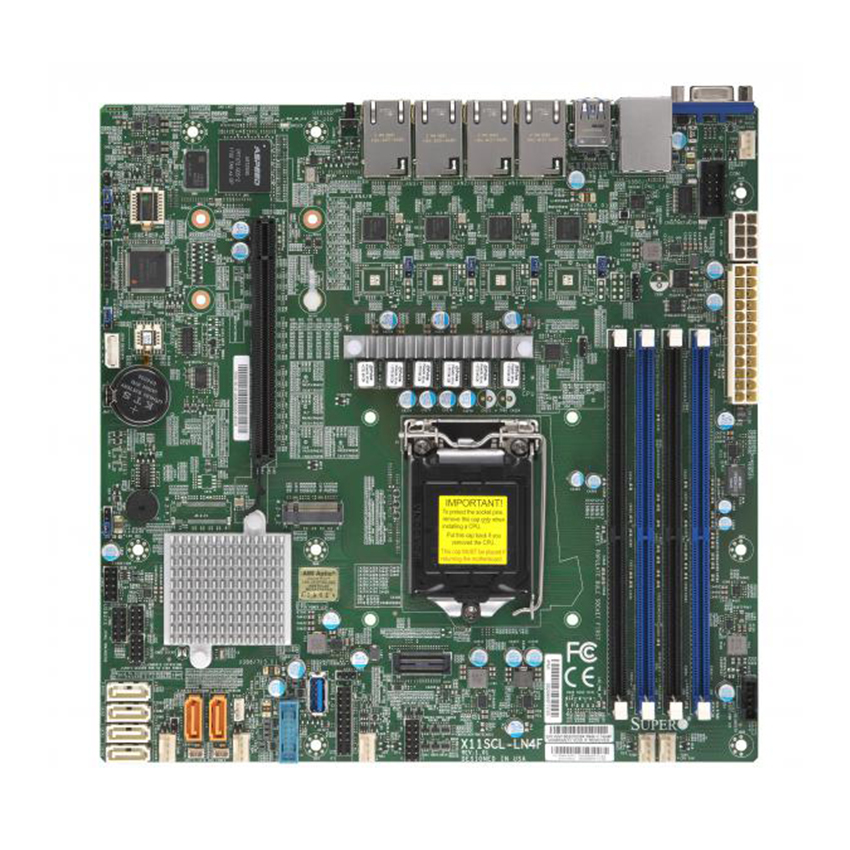

Mainboard Supermicro MBD-X11SCL-F-O

Hãng sản xuất

Supermicro

Chủng loại

MBD-X11SCL-F-o

CPU hỗ trợ

8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor., Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP

Chipset

Intel® C242 chipset

Bộ nhớ trong

Up to 128GB DDR4 2666MHz ECC UDIMM; 4 DIMM slots

VGA onboard

Aspeed AST2500 BMC

Khe mở rộng

1 PCI-E 3.0 x8 (in x16 slot),

2 PCI-E 3.0 x4 (in x8 slot)

Chuẩn lưu trữ

M.2 Interface: 1 PCI-E 3.0 x4

Intel® C242 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

Cổng giao tiếp

6 USB 2.0 ports (2 rear + 4 via headers)

5 USB 3.1 Gen1 ports (2 Rears Type A, 2 via headers, 1 Type A)

1 VGA port

2 COM Ports (1 rear, 1 header)

1 TPM Header

LAN

Dual LAN with 1GbE with Intel® I210

Kích thước

microATX (24.38cm x 24.38cm)
