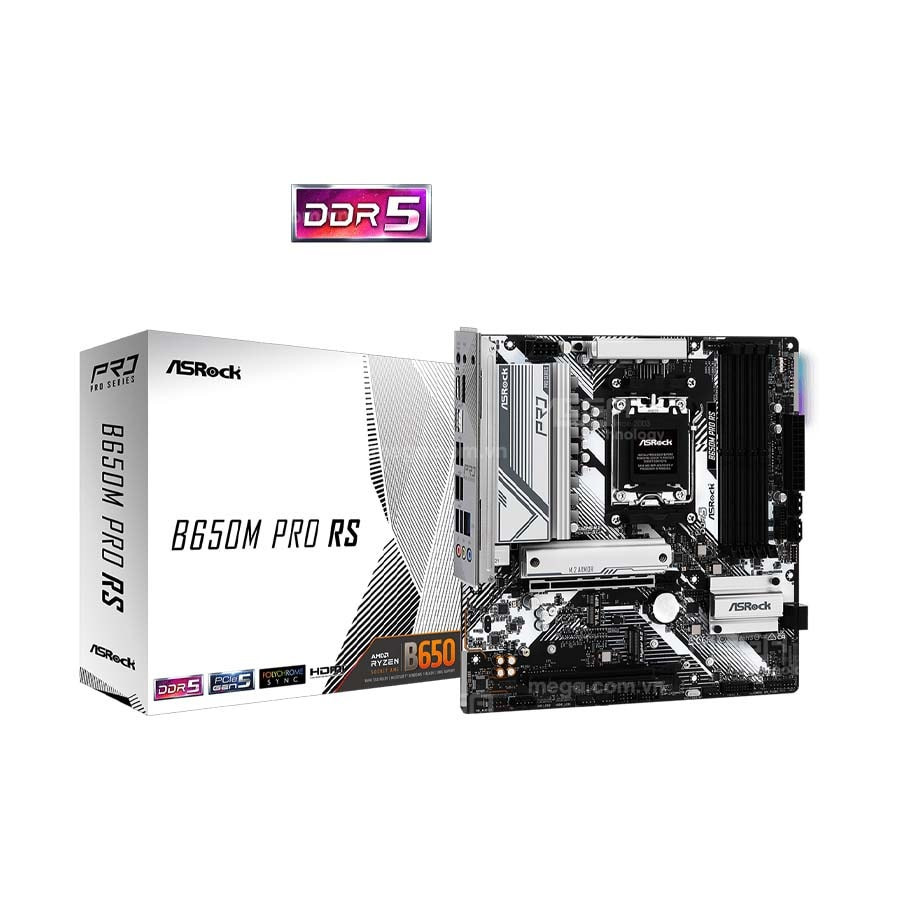

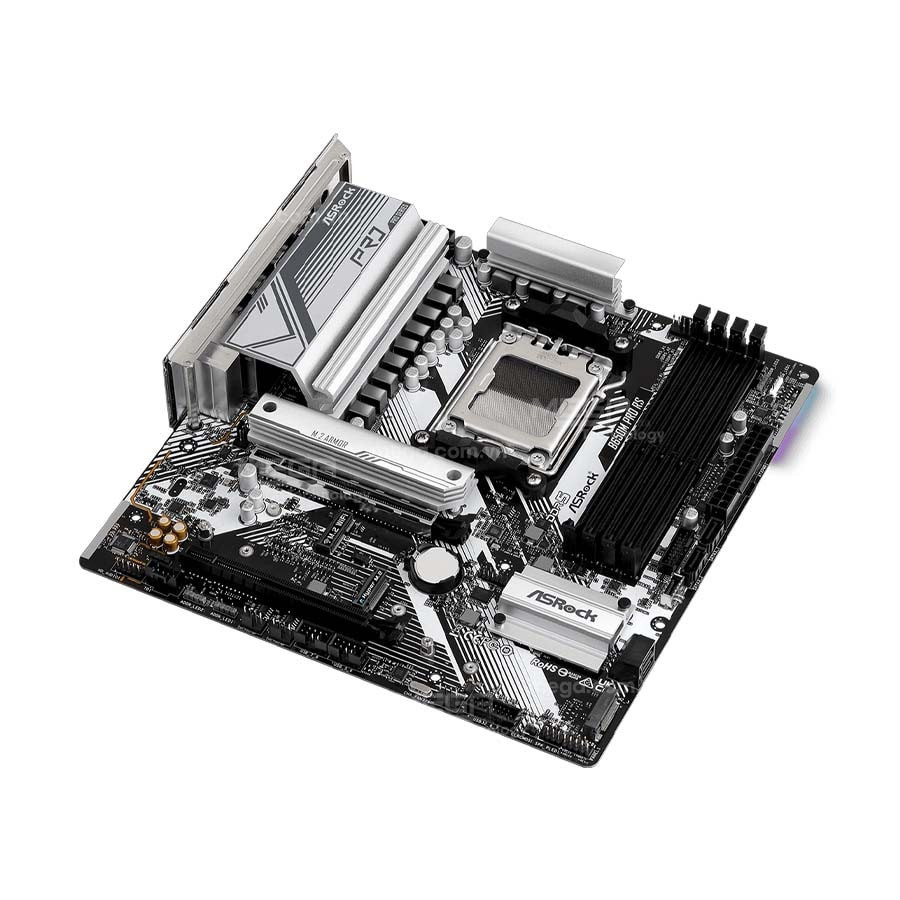

Mainboard ASRock B650M Pro RS DDR5

Sản phẩm

Bo mạch chủ

Tên Hãng

Asrock

Model

Asrock B650M Pro RS DDR5

CPU hỗ trợ

- Hỗ trợ bộ xử lý AMD Socket AM5 Ryzen™ 9000, 8000 và 7000 Series

Chipset

AMD B650

RAM hỗ trợ

4 x DDR5 DIMM Slots
– Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
– Max. capacity of system memory: 192GB

Đồ họa

CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
– 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
Chipset:
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*
– Supports AMD CrossFire™
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Cổng kết nối (Internal)

– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen1 Header

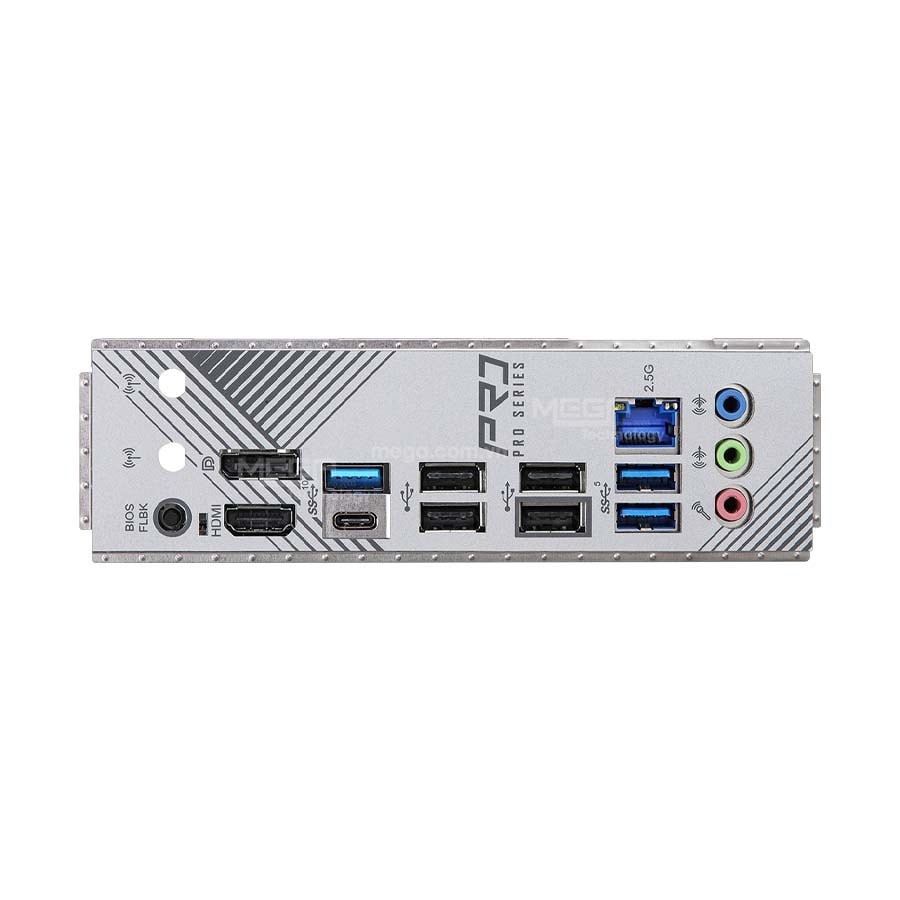

Cổng kết nối (Back Panel)

– 2 x Antenna Ports
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
– 2 x USB 3.2 Gen1 Ports
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / Microphone

LAN / Wireless

– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Kích cỡ

Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
