Giá bán: 7.490.000đ
- Hỗ trợ CPU Intel thế hệ thứ 12 và 13
- Socket: LGA1700 , Chipset: Z790
- Hỗ trợ RAM: 4 khe DDR5, tối đa 128Gb
- Chuẩn mainboard: ATX
|

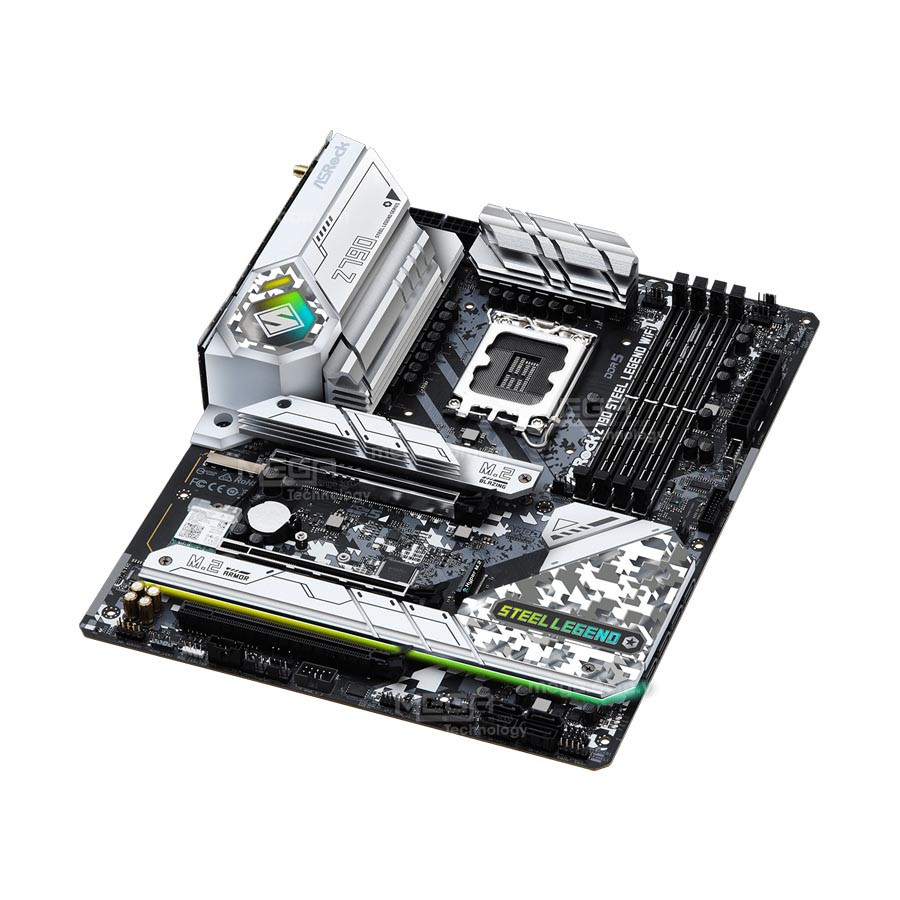

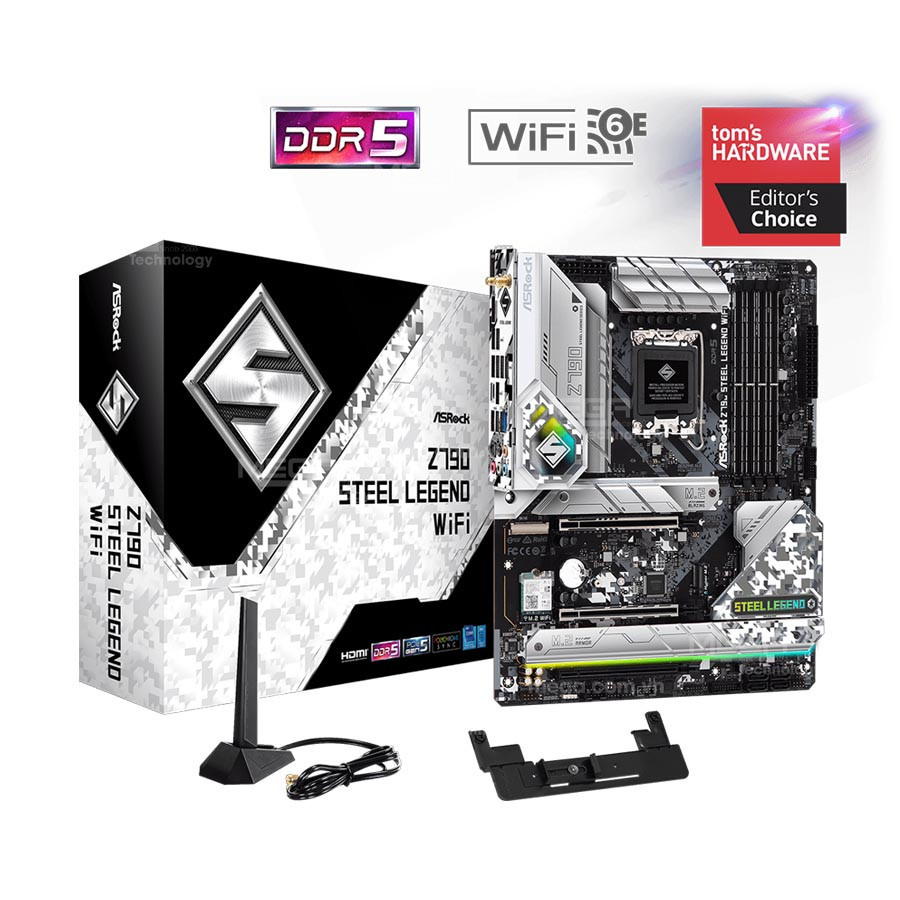

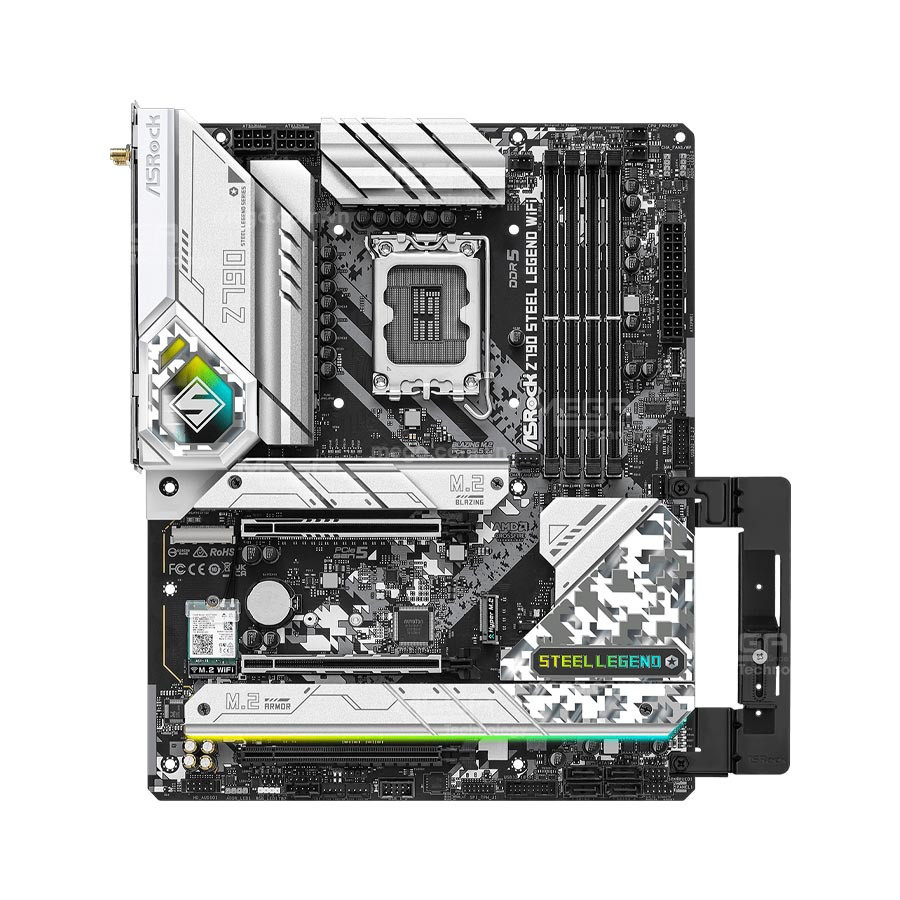

Mainboard Asrock Z790 STEEL LEGEND WIFI DDR57.490.000đ |
5/5
đánh giá & nhận xétBạn đã dùng sản phẩm này?
Gửi đánh giá của bạn| Thương hiệu | Asrock |
| Sản phẩm | Mainboard |
| Model | Z790 STEEL LEGEND WIFI DDR5 |
| CPU hỗ trợ | Intel |
| Chipset | Intel Z790 Chipset |
| RAM hỗ trợ | 4 x DIMM, Max. 128GB Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC) |
| Khe cắm mở rộng | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode |
| Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) |
|
| Ổ cứng hỗ trợ | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* |
| Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 8 x SATA3 6.0 Gb/s Connectors |
|
| USB | 1 x USB 3.2 Gen2x2 Type-C (Front) 1 x USB 3.2 Gen2 Type-C (Rear) 1 x USB 3.2 Gen2 Type-A (Rear) 12 x USB 3.2 Gen1 (8 Rear, 4 Front) 3 x USB 2.0 (3 Front) |
| Cổng kết nối (Internal) | - 1 x eDP Signal Connector - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |

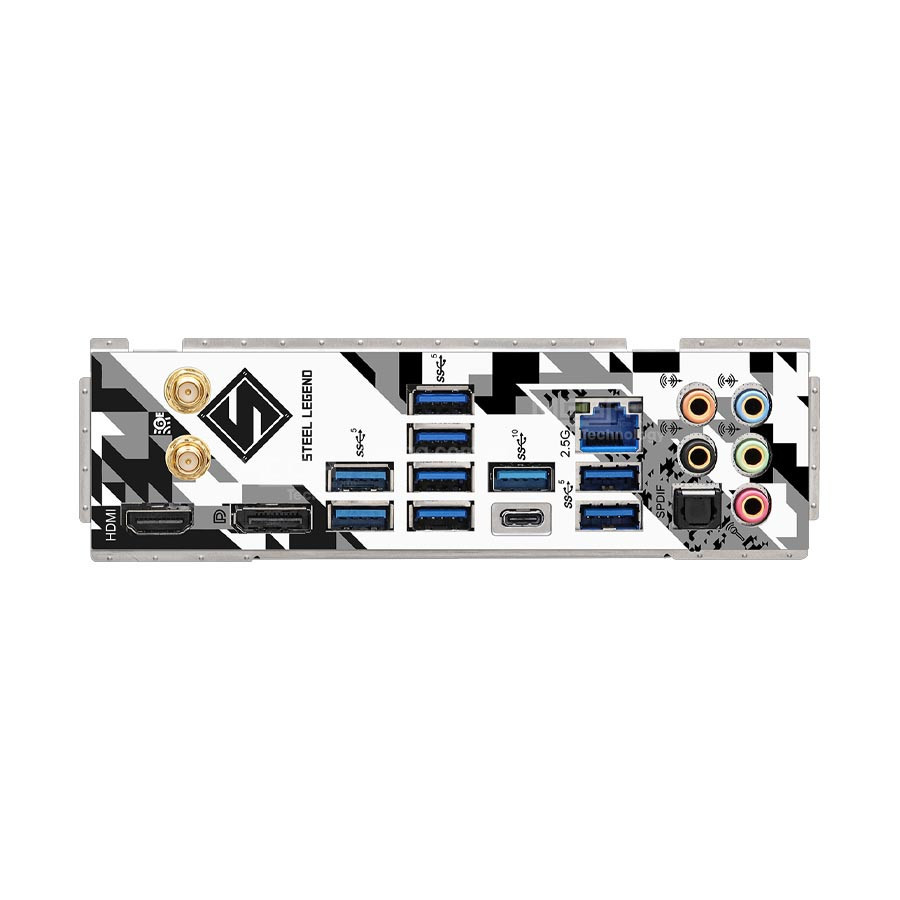

| Cổng kết nối (Back Panel) | - 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 8 x USB 3.2 Gen1 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Wireless | 802.11ax Wi-Fi 6E Module |
| Kích cỡ | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
